Model

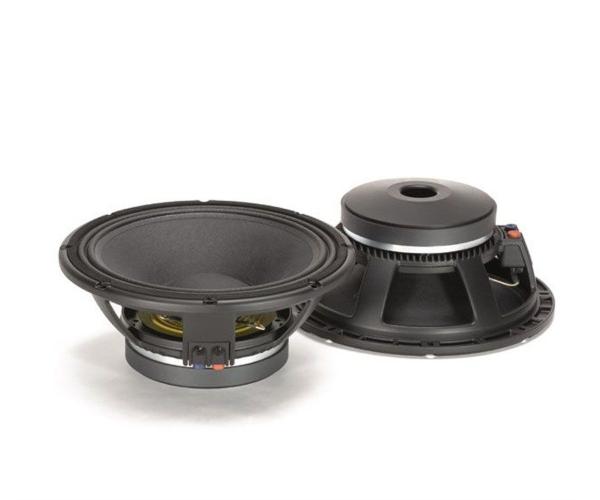

RCF L12/568H
Rating
DIAM
12"
FS(Hz)
58.8
VAS(l)
72
QTS
0.41
PWR(W)
200
SPL(dB)
97.1
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
58.8
Vas(l)
72
Qts
0.41
Qms
5.8
Qes
0.44
Bl(Tm)
14.4
Mms(gr)
40
Cms(mm/N)
0.18
Rms(kg/s)
2.548
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
53000
Vd(l)
0.212
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
