Model

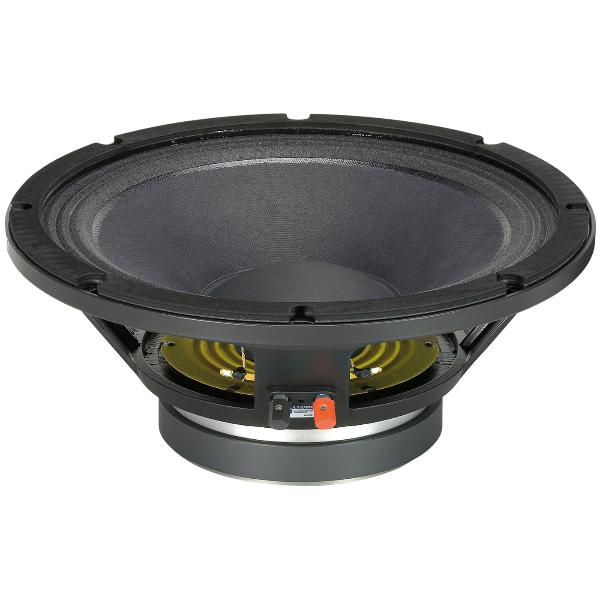

RCF L12/854K
Rating
DIAM
12"
FS(Hz)
67
VAS(l)
58
QTS
0.38
PWR(W)
700
SPL(dB)
97.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
67
Vas(l)
58
Qts
0.38
Qms
3.4
Qes
0.428
Bl(Tm)
13.7
Mms(gr)
38
Cms(mm/N)
0.148
Rms(kg/s)
4.705
Le(mH)
1.1
Re(Ohm)
5
Sd(sq.mm)
53000
Vd(l)
0.093
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
3.93
Sensitivity(dB) 1-W
97.9
Sensitivity(dB) 2.8-V
99.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
320
Cutout Diameter (mm)
286
Mounting Depth (mm)
137
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
