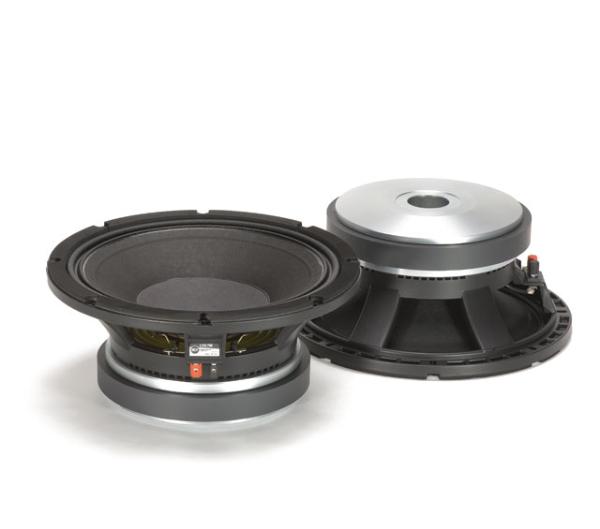

Model
RCF L12L750
Rating
DIAM
12"
FS(Hz)
62
VAS(l)
52
QTS
0.27
PWR(W)
700
SPL(dB)
98.2
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
62
Vas(l)
52
Qts
0.27
Qms
4.1
Qes
0.289
Bl(Tm)
18.8
Mms(gr)
50
Cms(mm/N)
0.132
Rms(kg/s)
4.751
Le(mH)
0
Re(Ohm)
5.2
Sd(sq.mm)
52703
Vd(l)
0.184
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
98.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.9
Total Diameter (mm)
0
Cutout Diameter (mm)
285
Mounting Depth (mm)
126
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6
