Model

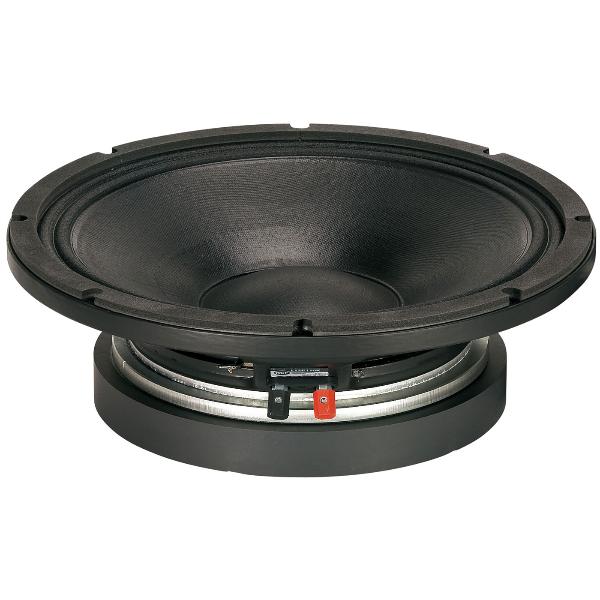

RCF L12P110K
Rating
DIAM
12"
FS(Hz)
44
VAS(l)
98
QTS
0.13
PWR(W)
500
SPL(dB)
99.6
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
44
Vas(l)
98
Qts
0.13
Qms
4.3
Qes
0.14
Bl(Tm)
25
Mms(gr)
55
Cms(mm/N)
0.249
Rms(kg/s)
3.536
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
53000
Vd(l)
0.159
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
99.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
