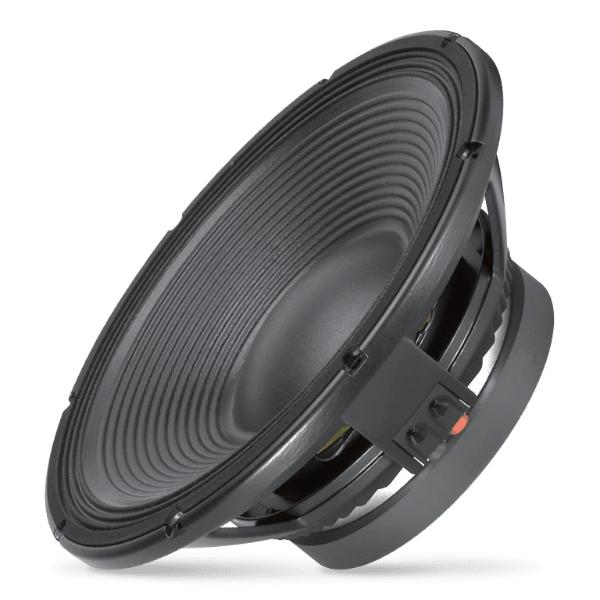

RCF L15P400
RCF L15P400
Model

RCF L15P400

Rating
DIAM
15"
FS(Hz)
36
VAS(l)
160
QTS
0.25
PWR(W)
800
SPL(dB)
96.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
36
Vas(l)
160
Qts
0.25
Qms
7.5
Qes
0.27
Bl(Tm)
24.8
Mms(gr)
150
Cms(mm/N)
0.138
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
4.9
Sd(sq.mm)
91000
Vd(l)
0.728
X-max(mm)
8
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.67
Sensitivity(dB) 1-W
96.3
Sensitivity(dB) 2.8-V
98.4

Mounting Information

Speaker Displacement (l)
4.3
Total Diameter (mm)
393
Cutout Diameter (mm)
351
Mounting Depth (mm)
143
Magnet Diameter (mm)
220

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
