Model

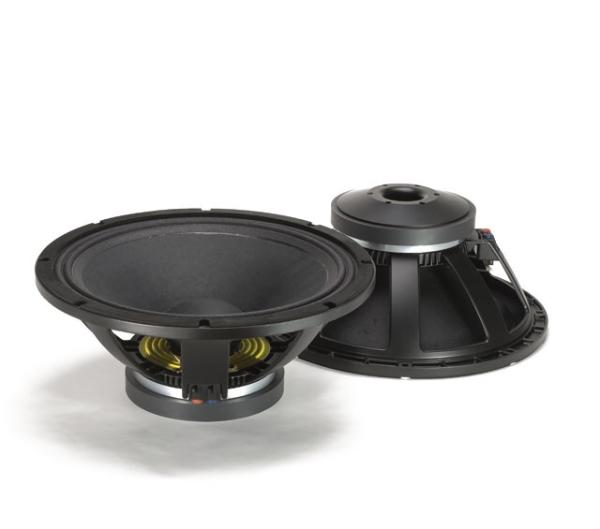

RCF L18P300
Rating
DIAM
18"
FS(Hz)
33
VAS(l)
226
QTS
0.33
PWR(W)
1000
SPL(dB)
95.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
226
Qts
0.33
Qms
8.3
Qes
0.34
Bl(Tm)
23.5
Mms(gr)
180
Cms(mm/N)
0.126
Rms(kg/s)
4.497
Le(mH)
1.9
Re(Ohm)
5
Sd(sq.mm)
113000
Vd(l)
0.881
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.3
Sensitivity(dB) 1-W
95.6
Sensitivity(dB) 2.8-V
97.6
Mounting Information
Speaker Displacement (l)
6.5
Total Diameter (mm)
470
Cutout Diameter (mm)
416
Mounting Depth (mm)
209
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
