Model

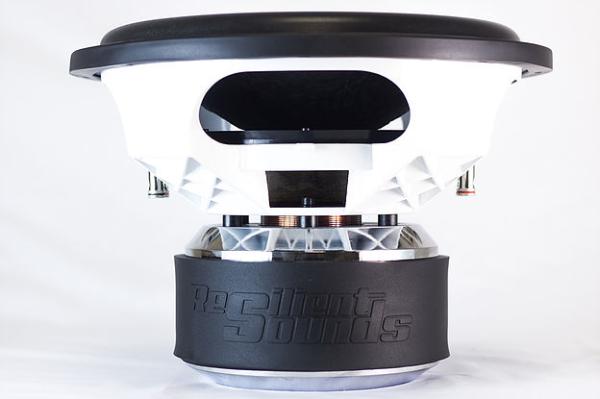

Resilient Sounds GOLD 15
Rating
DIAM
15"
FS(Hz)
29.4
VAS(l)
77.9
QTS
0.57
PWR(W)
2000
SPL(dB)
86.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.4
Vas(l)
77.9
Qts
0.57
Qms
5.8
Qes
0.64
Bl(Tm)
28.1
Mms(gr)
341
Cms(mm/N)
0.09
Rms(kg/s)
10.8
Le(mH)
5.16
Re(Ohm)
8
Sd(sq.mm)
78121
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
86.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
