Model

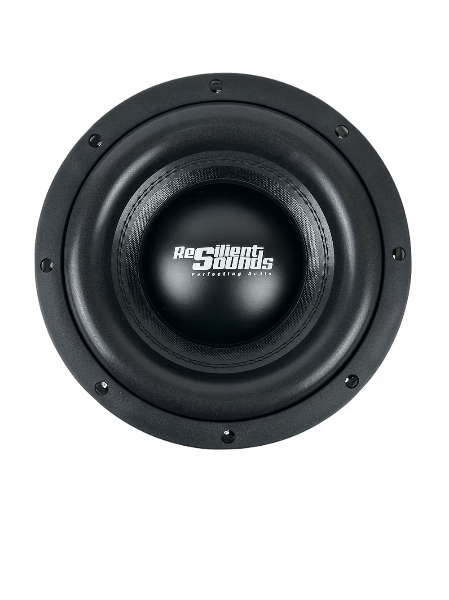

Resilient Sounds Gold V1 10 d2
Rating
DIAM
10"
FS(Hz)
38.9
VAS(l)
9.9
QTS
0.44
PWR(W)
2000
SPL(dB)
82.7
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38.9
Vas(l)
9.9
Qts
0.44
Qms
5.27
Qes
0.48
Bl(Tm)
32.4
Mms(gr)
257
Cms(mm/N)
0.07
Rms(kg/s)
11.911
Le(mH)
6.45
Re(Ohm)
4
Sd(sq.mm)
31596
Vd(l)
0.18
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
85.7
Mounting Information
Speaker Displacement (l)
5.097
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
191
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
