Model

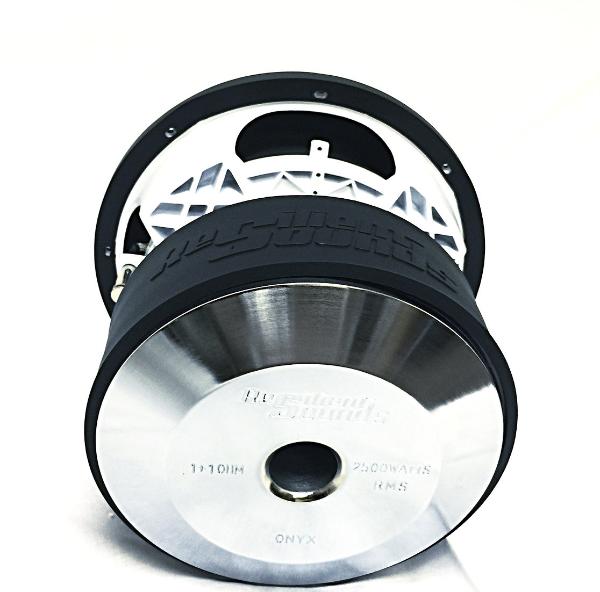

Resilient Sounds ONYX 12
Rating
DIAM
12"
FS(Hz)
44.4
VAS(l)
15.9
QTS
0.28
PWR(W)
5000
SPL(dB)
88.4
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
44.4
Vas(l)
15.9
Qts
0.28
Qms
2.7
Qes
0.31
Bl(Tm)
22.1
Mms(gr)
271
Cms(mm/N)
0.047
Rms(kg/s)
28.04
Le(mH)
0.78
Re(Ohm)
2
Sd(sq.mm)
48840
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.43
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
94.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
