Model

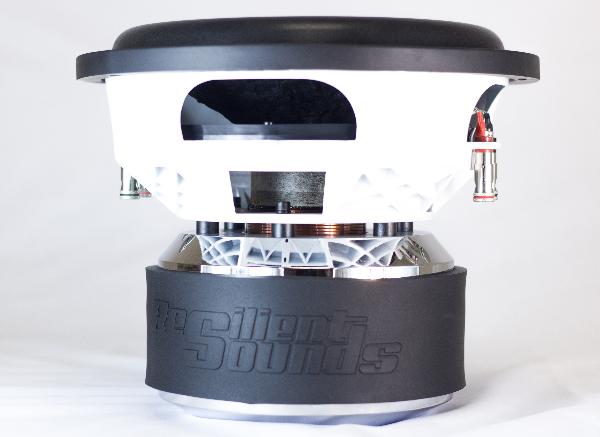

Resilient Sounds PLATINUM 12 D1
Rating
DIAM
12"
FS(Hz)
29.3
VAS(l)
27.1
QTS
0.24
PWR(W)
4000
SPL(dB)
86.2
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.3
Vas(l)
27.1
Qts
0.24
Qms
5.1
Qes
0.25
Bl(Tm)
22.2
Mms(gr)
339
Cms(mm/N)
0.09
Rms(kg/s)
12.3
Le(mH)
1.89
Re(Ohm)
2
Sd(sq.mm)
46077
Vd(l)
1.382
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
92.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
