Model

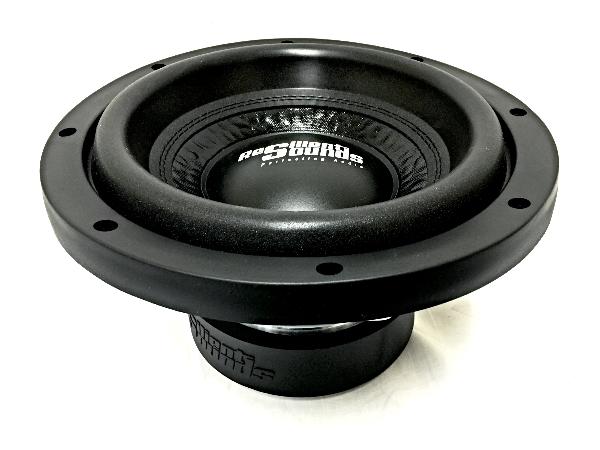

Resilient Sounds RS-10
Rating
DIAM
10"
FS(Hz)
31.4
VAS(l)
23.8
QTS
0.36
PWR(W)
1000
SPL(dB)
84.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.4
Vas(l)
23.8
Qts
0.36
Qms
4.4
Qes
0.4
Bl(Tm)
25.6
Mms(gr)
165
Cms(mm/N)
0.16
Rms(kg/s)
7.38
Le(mH)
3.66
Re(Ohm)
8
Sd(sq.mm)
32386
Vd(l)
0.518
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.18
Sensitivity(dB) 1-W
84.5
Sensitivity(dB) 2.8-V
84.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
233
Mounting Depth (mm)
146
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
