Model

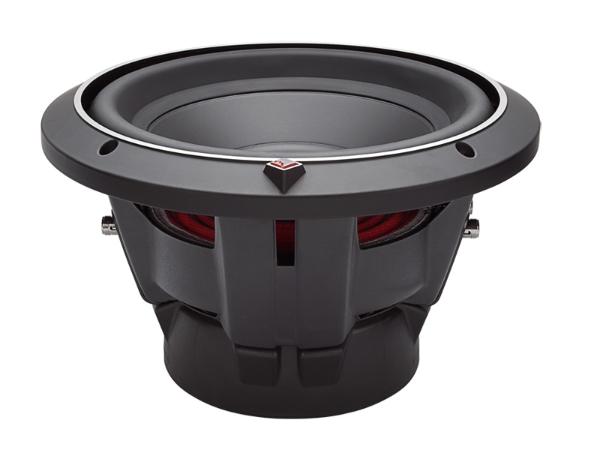

Rockford Fosgate P2D2-10
Rating
DIAM
10"
FS(Hz)
29
VAS(l)
35.4
QTS
0.5
PWR(W)
600
SPL(dB)
83.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
35.4
Qts
0.5
Qms
7
Qes
0.538
Bl(Tm)
13
Mms(gr)
156
Cms(mm/N)
0.193
Rms(kg/s)
4.063
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
36000
Vd(l)
0.396
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
150
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
