Model

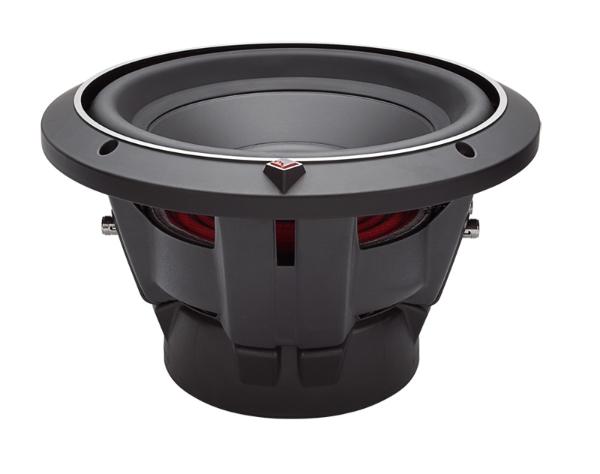

Rockford Fosgate P2D4-10
Rating
DIAM
10"
FS(Hz)
30.8
VAS(l)
35.4
QTS
0.57
PWR(W)
600
SPL(dB)
84.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30.8
Vas(l)
35.4
Qts
0.57
Qms
7
Qes
0.621
Bl(Tm)
16.6
Mms(gr)
138
Cms(mm/N)
0.193
Rms(kg/s)
3.826
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
36000
Vd(l)
0.396
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
150
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
