Model

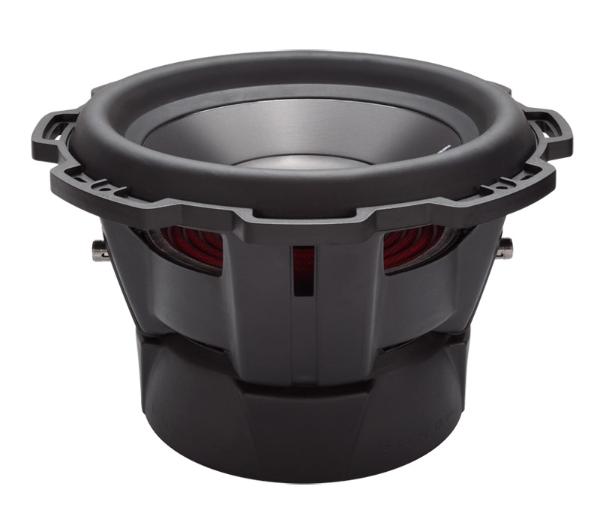

Rockford Fosgate P3D2-10
Rating
DIAM
10"
FS(Hz)
26.6
VAS(l)
27
QTS
0.49
PWR(W)
1000
SPL(dB)
81.6
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26.6
Vas(l)
27
Qts
0.49
Qms
6
Qes
0.534
Bl(Tm)
15.6
Mms(gr)
244
Cms(mm/N)
0.147
Rms(kg/s)
6.783
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
36000
Vd(l)
0.547
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
157
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
