Model

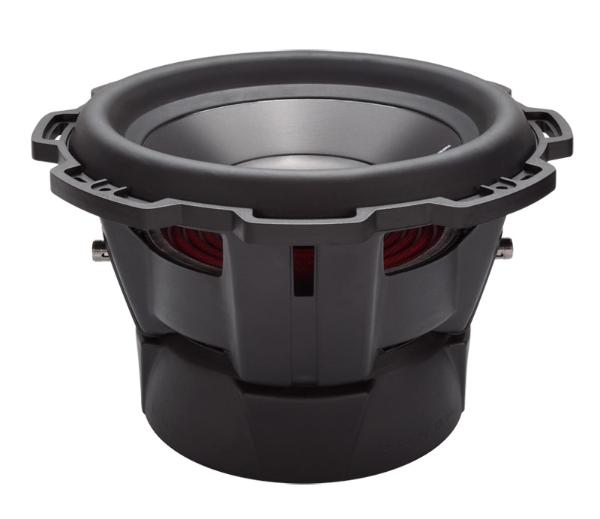

Rockford Fosgate P3D4-10
Rating
DIAM
10"
FS(Hz)
28
VAS(l)
27
QTS
0.56
PWR(W)
1000
SPL(dB)
81.6
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
27
Qts
0.56
Qms
5
Qes
0.631
Bl(Tm)
19.8
Mms(gr)
220
Cms(mm/N)
0.147
Rms(kg/s)
7.734
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
36000
Vd(l)
0.572
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
157
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
