Model

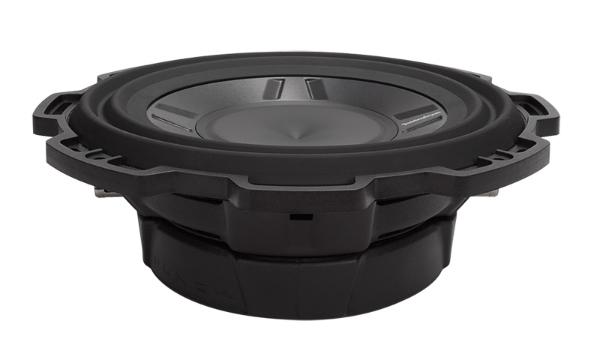

Rockford Fosgate P3SD2-10
Rating
DIAM
10"
FS(Hz)
40
VAS(l)
14.3
QTS
0.64
PWR(W)
600
SPL(dB)
82.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
14.3
Qts
0.64
Qms
6.2
Qes
0.714
Bl(Tm)
14.4
Mms(gr)
174
Cms(mm/N)
0.091
Rms(kg/s)
7.053
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
33300
Vd(l)
0.28
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.1
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
89
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
