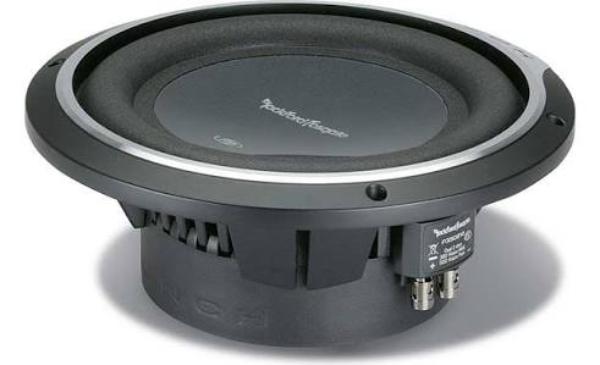

Rockford Fosgate P3SD210 OLD
Rockford Fosgate P3SD210 OLD
Model

Rockford Fosgate P3SD210 OLD

Rating
DIAM
10"
FS(Hz)
45
VAS(l)
10.4
QTS
0.66
PWR(W)
600
SPL(dB)
82.7
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
45
Vas(l)
10.4
Qts
0.66
Qms
4.5
Qes
0.773
Bl(Tm)
14.3
Mms(gr)
165
Cms(mm/N)
0.076
Rms(kg/s)
10.342
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
31000
Vd(l)
0.335
X-max(mm)
11
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.73
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
89
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
