Model

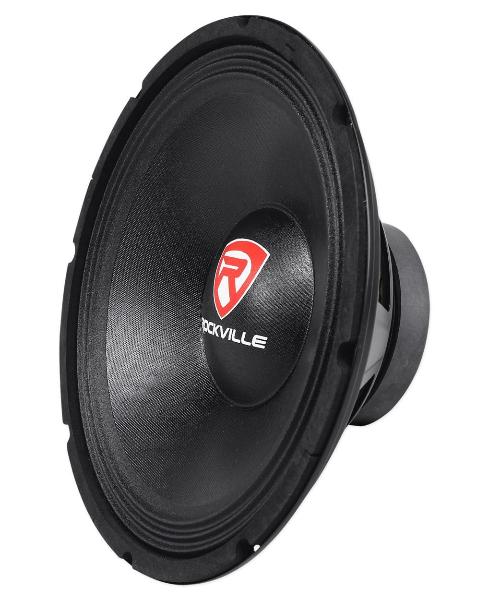

Rockville RVP12W8
Rating
DIAM
12"
FS(Hz)
54.2
VAS(l)
58.8
QTS
0.9
PWR(W)
600
SPL(dB)
91.3
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
54.2
Vas(l)
58.8
Qts
0.897
Qms
5.852
Qes
1.059
Bl(Tm)
11.3
Mms(gr)
59
Cms(mm/N)
0.147
Rms(kg/s)
3.42
Le(mH)
0
Re(Ohm)
6.8
Sd(sq.mm)
53093
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
117
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
