Model

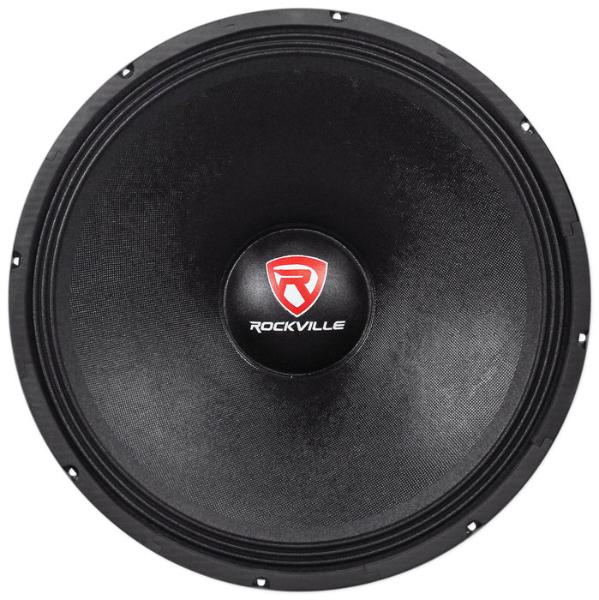

Rockville RVW1800P4
Rating
DIAM
18"
FS(Hz)
31.9
VAS(l)
380.1
QTS
0.36
PWR(W)
1800
SPL(dB)
96.8
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.9
Vas(l)
380.1
Qts
0.36
Qms
4.6
Qes
0.39
Bl(Tm)
15.9
Mms(gr)
155
Cms(mm/N)
0.15
Rms(kg/s)
6.74
Le(mH)
0
Re(Ohm)
3.2
Sd(sq.mm)
133664
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
1800
RMS Power(W.)
900
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
3.04
Sensitivity(dB) 1-W
96.8
Sensitivity(dB) 2.8-V
100.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
187
Magnet Diameter (mm)
76
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
