Model

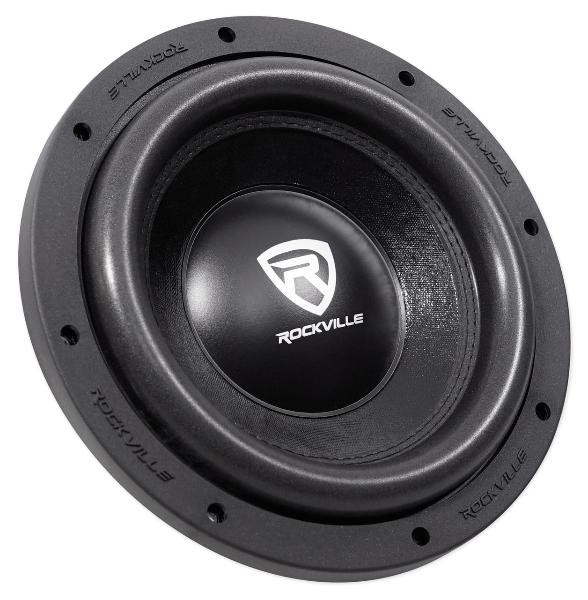

Rockville W10K6D2 V2
Rating
DIAM
10"
FS(Hz)
39.4
VAS(l)
12.2
QTS
0.63
PWR(W)
2000
SPL(dB)
82.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.4
Vas(l)
12.2
Qts
0.626
Qms
7.254
Qes
0.685
Bl(Tm)
17.8
Mms(gr)
203
Cms(mm/N)
0.08
Rms(kg/s)
6.945
Le(mH)
2.66
Re(Ohm)
4.3
Sd(sq.mm)
32819
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.2
Sensitivity(dB) 2.8-V
84.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
