Model

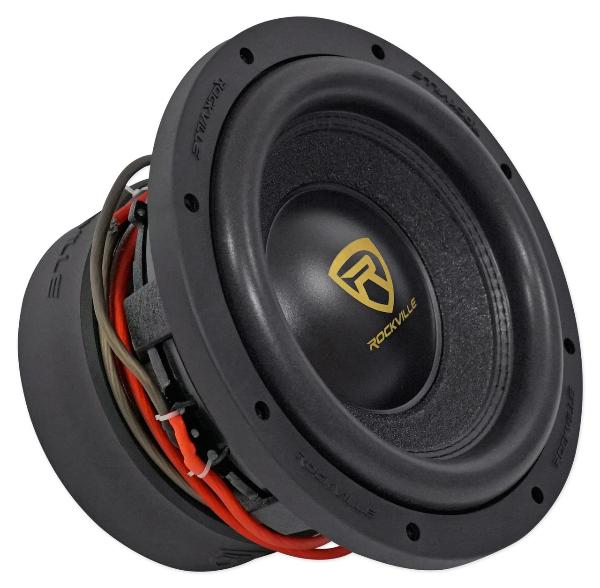

Rockville W10K9D2
Rating
DIAM
10"
FS(Hz)
34.4
VAS(l)
13.3
QTS
0.6
PWR(W)
1600
SPL(dB)
81.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
13.3
Qts
0.6
Qms
8
Qes
0.64
Bl(Tm)
19
Mms(gr)
261
Cms(mm/N)
0.082
Rms(kg/s)
7.04
Le(mH)
4.82
Re(Ohm)
4.1
Sd(sq.mm)
33813
Vd(l)
0.879
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
81.1
Sensitivity(dB) 2.8-V
84
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
238
Mounting Depth (mm)
160
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
