Model

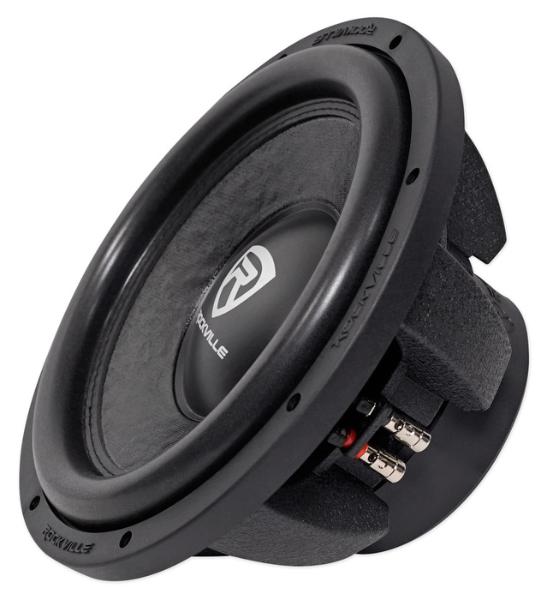

Rockville W12K6D2
Rating
DIAM
12"
FS(Hz)
36.6
VAS(l)
27.8
QTS
0.77
PWR(W)
1200
SPL(dB)
83.9
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
36.6
Vas(l)
27.8
Qts
0.767
Qms
7.6
Qes
0.853
Bl(Tm)
8.6
Mms(gr)
249
Cms(mm/N)
0.076
Rms(kg/s)
7.52
Le(mH)
1.08
Re(Ohm)
1.1
Sd(sq.mm)
50813
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
92.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
