Model

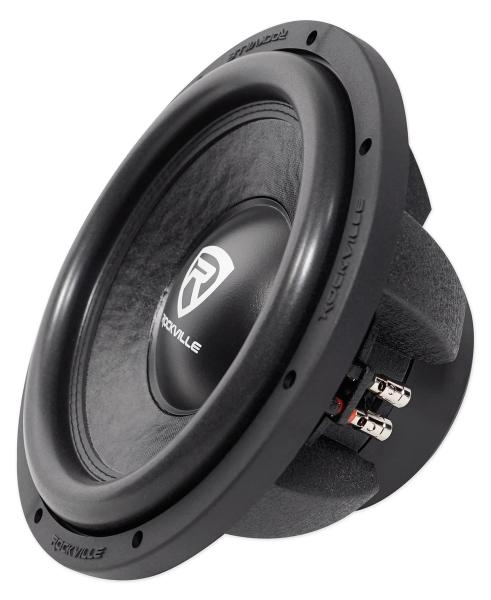

Rockville W12K6D4 V2
Rating
DIAM
12"
FS(Hz)
39.9
VAS(l)
26.4
QTS
0.85
PWR(W)
1200
SPL(dB)
84.2
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.9
Vas(l)
26.4
Qts
0.855
Qms
6.5
Qes
0.985
Bl(Tm)
10.9
Mms(gr)
207
Cms(mm/N)
0.072
Rms(kg/s)
8.505
Le(mH)
1.65
Re(Ohm)
2.1
Sd(sq.mm)
50800
Vd(l)
1.118
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.2
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
