Model

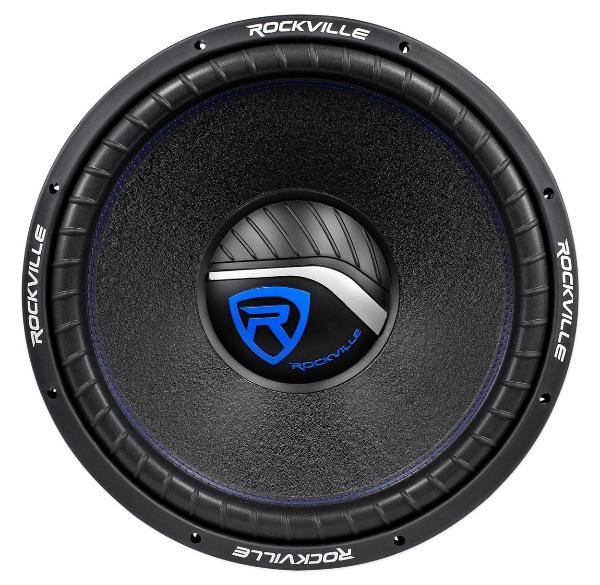

Rockville W15K6-D2
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
15"
FS(Hz)
29.8
VAS(l)
107.6
QTS
0.61
PWR(W)
1000
SPL(dB)
88.1
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.8
Vas(l)
107.6
Qts
0.607
Qms
5.654
Qes
0.68
Bl(Tm)
17.2
Mms(gr)
259
Cms(mm/N)
0.11
Rms(kg/s)
8.59
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
83039
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
