Model

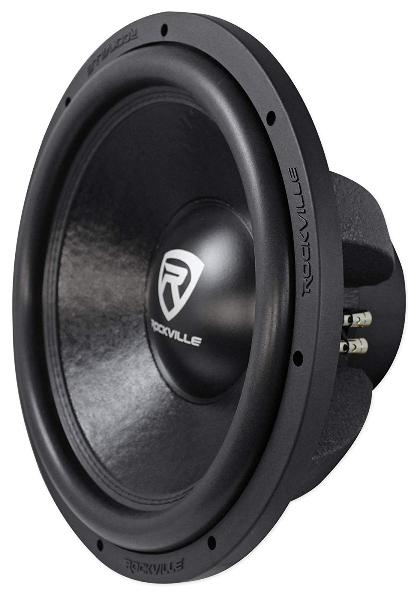

Rockville W15K6D4 V2
Rating
DIAM
15"
FS(Hz)
30
VAS(l)
109.8
QTS
0.66
PWR(W)
4000
SPL(dB)
87.8
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
109.8
Qts
0.66
Qms
5.3
Qes
0.754
Bl(Tm)
22.3
Mms(gr)
262
Cms(mm/N)
0.107
Rms(kg/s)
9.37
Le(mH)
4.04
Re(Ohm)
7.6
Sd(sq.mm)
85061
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.38
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
88
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
358
Mounting Depth (mm)
188
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
