Model

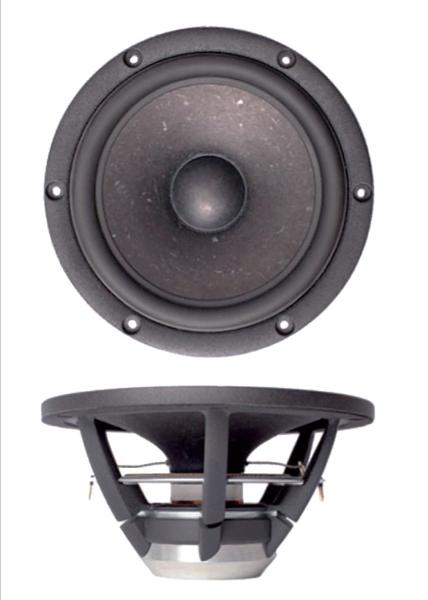

SB Acoustics SATORI MW16P-8
Rating
DIAM
7"
FS(Hz)
29
VAS(l)
48
QTS
0.33
PWR(W)
60
SPL(dB)
87.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
48
Qts
0.33
Qms
4.5
Qes
0.35
Bl(Tm)
6.3
Mms(gr)
12
Cms(mm/N)
2.416
Rms(kg/s)
0.502
Le(mH)
0.2
Re(Ohm)
6.2
Sd(sq.mm)
11900
Vd(l)
0.071
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
88.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
140
Mounting Depth (mm)
76
Magnet Diameter (mm)
70
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
