Model

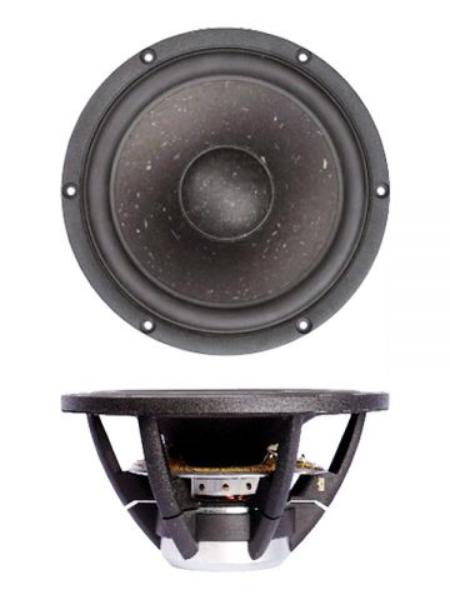

SB Acoustics SATORI MW19P-4
Rating
DIAM
8"
FS(Hz)
32
VAS(l)
48
QTS
0.28
PWR(W)
70
SPL(dB)
89
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
48
Qts
0.28
Qms
4.11
Qes
0.3
Bl(Tm)
6.5
Mms(gr)
18
Cms(mm/N)
1.371
Rms(kg/s)
0.9
Le(mH)
0.14
Re(Ohm)
3.4
Sd(sq.mm)
15800
Vd(l)
0.107
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
70
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.51
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
92.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
187
Cutout Diameter (mm)
163
Mounting Depth (mm)
90
Magnet Diameter (mm)
75
Optimum Enclosures
Enclosures
Vented, BP6
