Model

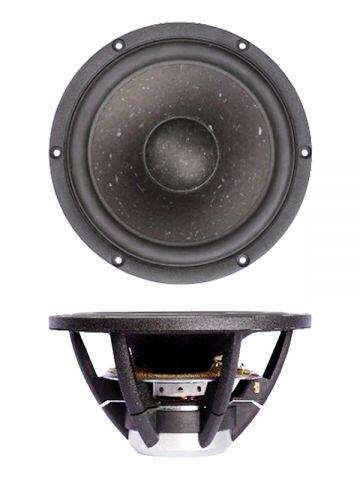

SB Acoustics SATORI MW19P-8
Rating
DIAM
8"
FS(Hz)
32.5
VAS(l)
48
QTS
0.33
PWR(W)
70
SPL(dB)
88.4
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
32.5
Vas(l)
48
Qts
0.33
Qms
4.06
Qes
0.36
Bl(Tm)
7.8
Mms(gr)
18
Cms(mm/N)
1.371
Rms(kg/s)
0.9
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
15800
Vd(l)
0.106
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
70
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
