Model

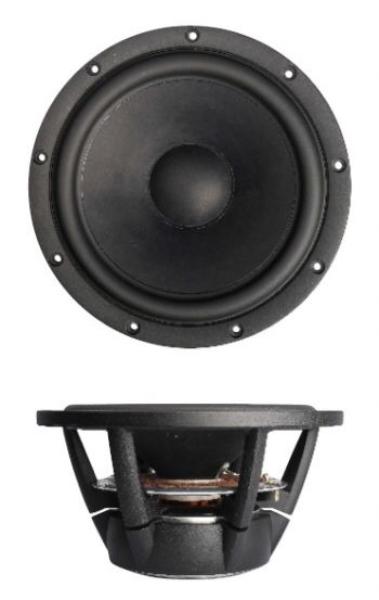

SB Acoustics SATORI WO24P-8
Rating
DIAM
9"
FS(Hz)
24.5
VAS(l)
85.2
QTS
0.4
PWR(W)
180
SPL(dB)
86.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
24.5
Vas(l)
85.2
Qts
0.4
Qms
5.7
Qes
0.43
Bl(Tm)
9.9
Mms(gr)
45
Cms(mm/N)
0.948
Rms(kg/s)
1.202
Le(mH)
0.56
Re(Ohm)
5.8
Sd(sq.mm)
25173
Vd(l)
0.214
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
9
Max Power(W.)
180
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
87.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
242
Cutout Diameter (mm)
210
Mounting Depth (mm)
132
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
