Model

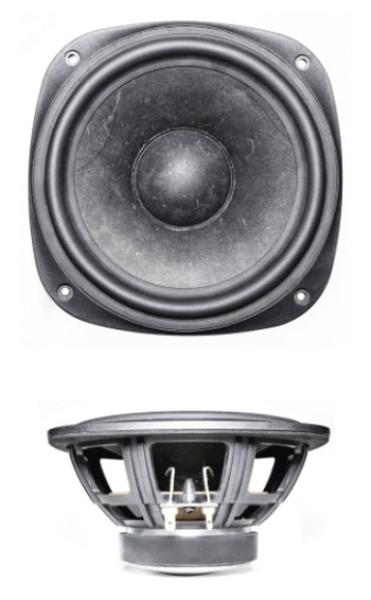

SB Acoustics SB13PFC25-8
Rating
DIAM
5"
FS(Hz)
45
VAS(l)
13.4
QTS
0.33
PWR(W)
80
SPL(dB)
86.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
13.4
Qts
0.33
Qms
2.2
Qes
0.39
Bl(Tm)
6.2
Mms(gr)
10
Cms(mm/N)
1.251
Rms(kg/s)
1.29
Le(mH)
0.77
Re(Ohm)
5.6
Sd(sq.mm)
8700
Vd(l)
0.039
X-max(mm)
5
X-mech(mm)
9
General Parameters
Diameter (inch)
5
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
88.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
135
Cutout Diameter (mm)
122
Mounting Depth (mm)
69
Magnet Diameter (mm)
85
Optimum Enclosures
Enclosures
Vented, BP6
