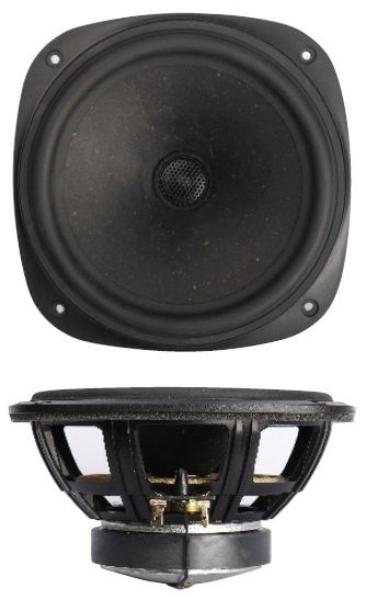

SB Acoustics SB16PFC25-4-COAX
SB Acoustics SB16PFC25-4-COAX
Model

SB Acoustics SB16PFC25-4-COAX

Rating
Star iconStar iconStar icon Star iconStar icon
DIAM
6"
FS(Hz)
36
VAS(l)
32.8
QTS
0.31
PWR(W)
20
SPL(dB)
90
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
36
Vas(l)
32.8
Qts
0.31
Qms
2.6
Qes
0.352
Bl(Tm)
4.9
Cms(mm/N)
1.564
Rms(kg/s)
1.087
Le(mH)
0
Mms(gr)
13
Vd(l)
0.059
Sd(sq.mm)
12470
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
3

General Parameters

Diameter (inch)
6
Max Power(W.)
20
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
145
Mounting Depth (mm)
77
Magnet Diameter (mm)
85

Optimum Enclosures

Enclosures
Vented, BP6
