Model

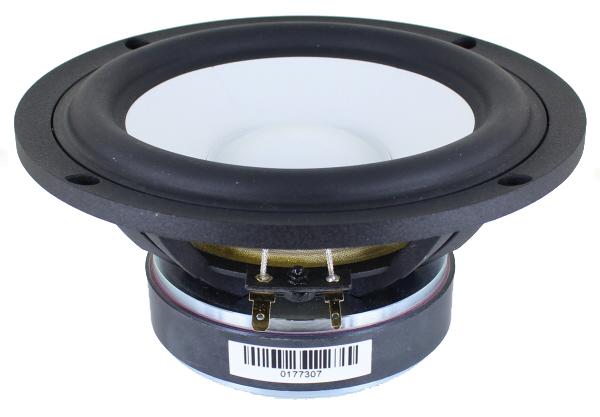

SB Acoustics SB17CAC35-4
Rating
DIAM
6"
FS(Hz)
29.5
VAS(l)
37.8
QTS
0.29
PWR(W)
0
SPL(dB)
86.8
IMP(Ohm)
0x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.5
Vas(l)
37.8
Qts
0.29
Qms
4.7
Qes
0.31
Bl(Tm)
5.3
Mms(gr)
15
Cms(mm/N)
1.91
Rms(kg/s)
0.6
Le(mH)
0.13
Re(Ohm)
3.1
Sd(sq.mm)
11800
Vd(l)
0.065
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
0
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
0
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
171
Cutout Diameter (mm)
144
Mounting Depth (mm)
0
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
