Model

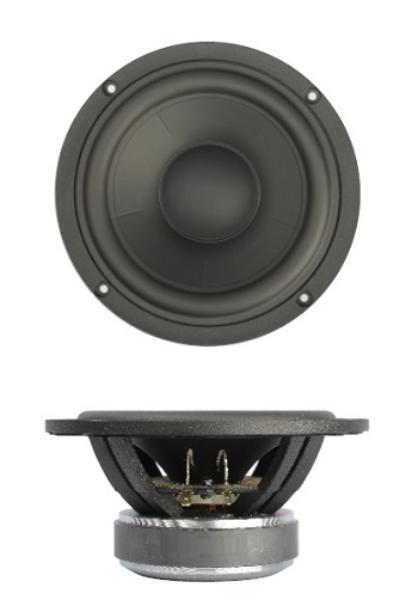

SB Acoustics SB17NBAC35-4
Rating
DIAM
6"
FS(Hz)
30
VAS(l)
42.6
QTS
0.29
PWR(W)
60
SPL(dB)
87.5
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
42.6
Qts
0.29
Qms
4.3
Qes
0.31
Bl(Tm)
4.9
Mms(gr)
12
Cms(mm/N)
2.27
Rms(kg/s)
0.544
Le(mH)
0.13
Re(Ohm)
3.1
Sd(sq.mm)
11503
Vd(l)
0.063
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
60
RMS Power(W.)
30
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
91.6
Mounting Information
Speaker Displacement (l)
0.849
Total Diameter (mm)
171
Cutout Diameter (mm)
145
Mounting Depth (mm)
75
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
