Model

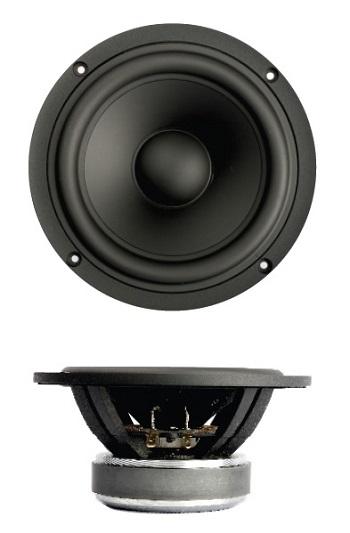

SB Acoustics SB17NRX2C35-4
Rating
DIAM
6"
FS(Hz)
36
VAS(l)
27.6
QTS
0.37
PWR(W)
120
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
27.6
Qts
0.37
Qms
4.49
Qes
0.41
Bl(Tm)
4.9
Mms(gr)
14
Cms(mm/N)
1.4
Rms(kg/s)
0.7
Le(mH)
0.13
Re(Ohm)
3.1
Sd(sq.mm)
11800
Vd(l)
0
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
171
Cutout Diameter (mm)
145
Mounting Depth (mm)
75
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
