Model

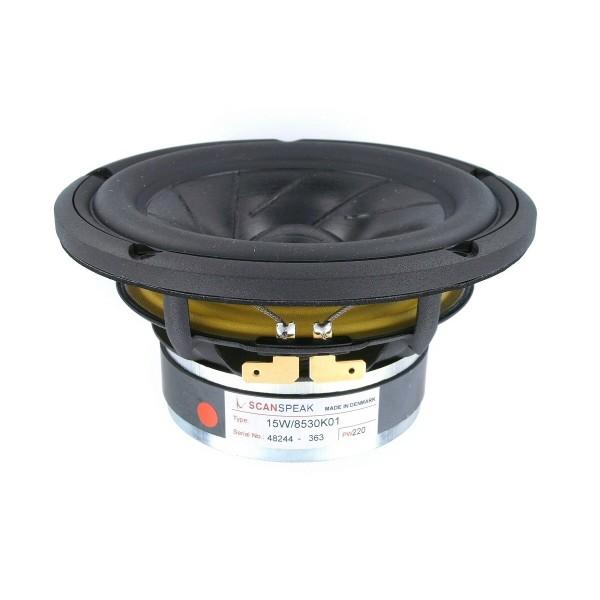

Scan-Speak 15W/8530K01
Rating
DIAM
6"
FS(Hz)
32
VAS(l)
24
QTS
0.41
PWR(W)
120
SPL(dB)
84.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
24
Qts
0.41
Qms
5.23
Qes
0.44
Bl(Tm)
5.9
Mms(gr)
13
Cms(mm/N)
1.903
Rms(kg/s)
0.507
Le(mH)
0
Re(Ohm)
5.8
Sd(sq.mm)
9500
Vd(l)
0.062
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
125
Mounting Depth (mm)
70
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
