Model

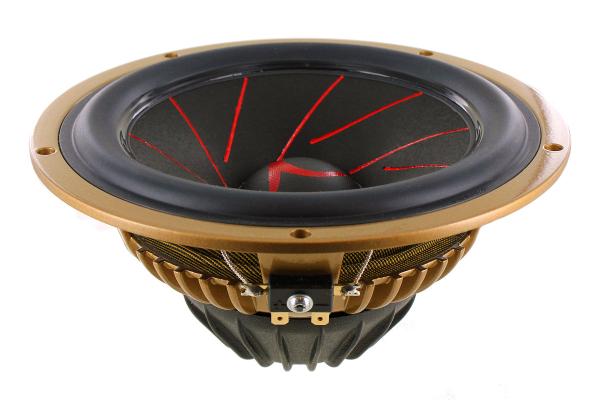

Scan-Speak 16W/4538G05
Rating
DIAM
6"
FS(Hz)
36
VAS(l)
24
QTS
0.35
PWR(W)
125
SPL(dB)
86.4
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
24
Qts
0.35
Qms
3.8
Qes
0.39
Bl(Tm)
5.5
Mms(gr)
17
Cms(mm/N)
1.157
Rms(kg/s)
1
Le(mH)
0.18
Re(Ohm)
3.1
Sd(sq.mm)
12094
Vd(l)
0.08
X-max(mm)
7
X-mech(mm)
14
General Parameters
Diameter (inch)
6
Max Power(W.)
125
RMS Power(W.)
70
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
141
Mounting Depth (mm)
74
Magnet Diameter (mm)
83
Optimum Enclosures
Enclosures
Vented, BP6
