Model

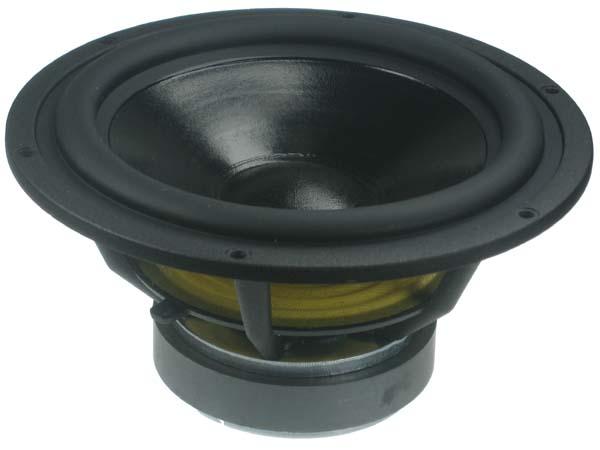

Seas CA22RNX
Rating
DIAM
8"
FS(Hz)
29
VAS(l)
97
QTS
0.41
PWR(W)
250
SPL(dB)
88.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
97
Qts
0.41
Qms
2.04
Qes
0.52
Bl(Tm)
6.7
Mms(gr)
21
Cms(mm/N)
1.4
Rms(kg/s)
2.05
Le(mH)
1
Re(Ohm)
6.1
Sd(sq.mm)
23000
Vd(l)
0.138
X-max(mm)
6
X-mech(mm)
13
General Parameters
Diameter (inch)
8
Max Power(W.)
250
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.44
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
221
Cutout Diameter (mm)
186
Mounting Depth (mm)
90
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
