Model

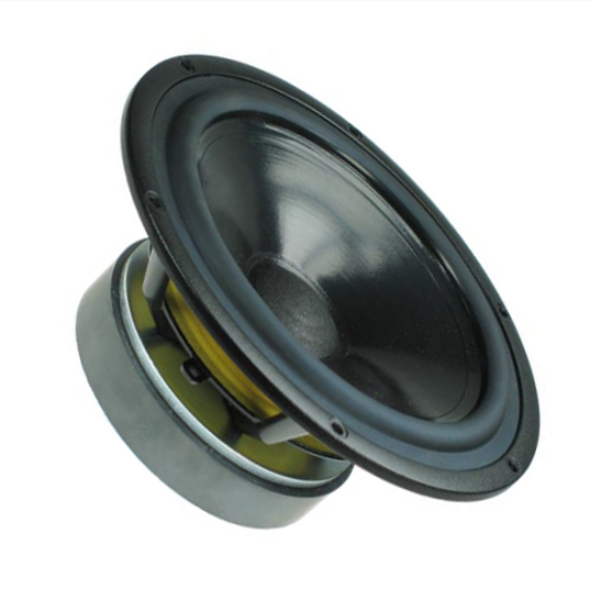

Seas CA22RNY
Rating
DIAM
8"
FS(Hz)
34
VAS(l)
82
QTS
0.3
PWR(W)
250
SPL(dB)
91.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
82
Qts
0.297
Qms
1.7
Qes
0.36
Bl(Tm)
8.5
Mms(gr)
20
Cms(mm/N)
1.107
Rms(kg/s)
2.49
Le(mH)
1.55
Re(Ohm)
6.8
Sd(sq.mm)
22854
Vd(l)
0.13
X-max(mm)
6
X-mech(mm)
10
General Parameters
Diameter (inch)
8
Max Power(W.)
250
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.86
Sensitivity(dB) 1-W
91.4
Sensitivity(dB) 2.8-V
92.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
221
Cutout Diameter (mm)
186
Mounting Depth (mm)
97
Magnet Diameter (mm)
134
Optimum Enclosures
Enclosures
Vented, BP6
