Model

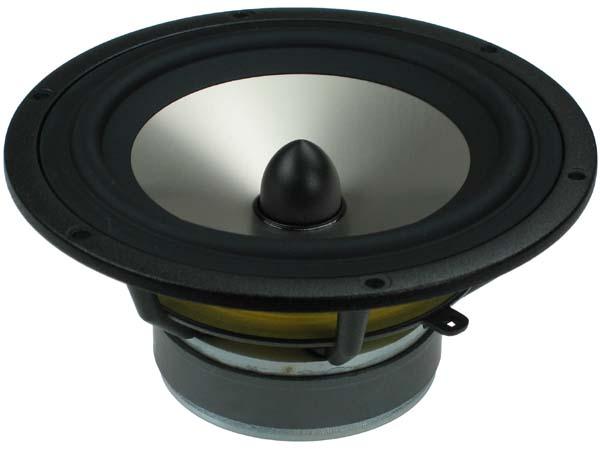

Seas H1085-08(L18RCY/P)
Rating
DIAM
7"
FS(Hz)
33
VAS(l)
38
QTS
0.31
PWR(W)
80
SPL(dB)
87.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
38
Qts
0.31
Qms
2.01
Qes
0.37
Bl(Tm)
6.5
Mms(gr)
13
Cms(mm/N)
1.8
Rms(kg/s)
1.31
Le(mH)
0.92
Re(Ohm)
5.9
Sd(sq.mm)
12500
Vd(l)
0.05
X-max(mm)
4
X-mech(mm)
8
General Parameters
Diameter (inch)
7
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.36
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
88.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
176
Cutout Diameter (mm)
145
Mounting Depth (mm)
73
Magnet Diameter (mm)
90
Optimum Enclosures
Enclosures
Vented, BP6
