Model

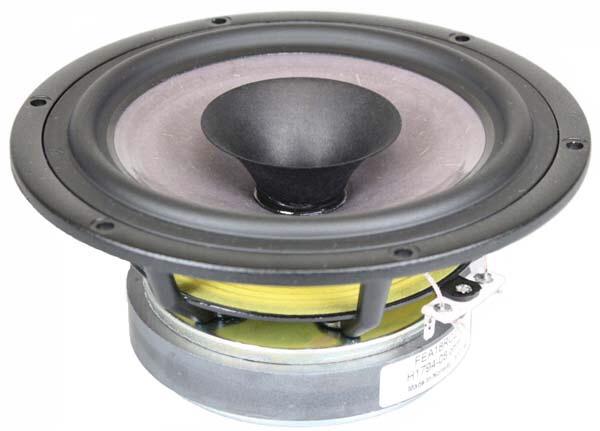

Seas H1794-08(FEA18RCZ)
Rating
DIAM
7"
FS(Hz)
42
VAS(l)
31
QTS
0.39
PWR(W)
110
SPL(dB)
89.2
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
31
Qts
0.39
Qms
6.29
Qes
0.42
Bl(Tm)
6.6
Mms(gr)
12
Cms(mm/N)
1.187
Rms(kg/s)
0.508
Le(mH)
0
Re(Ohm)
5.7
Sd(sq.mm)
13600
Vd(l)
0.041
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
110
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
145
Mounting Depth (mm)
73
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6P
