Model

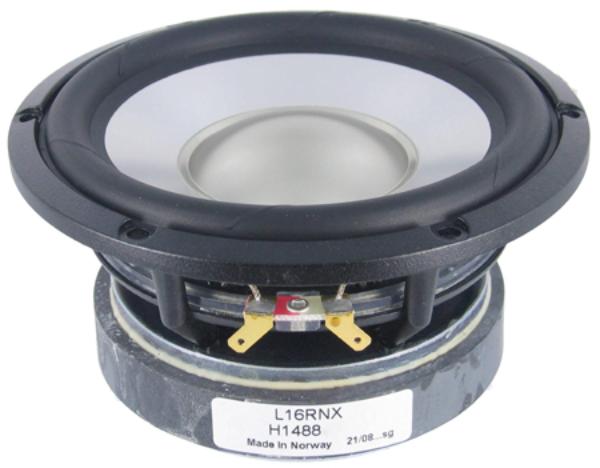

Seas L16RNX, 4 OHM
Rating
DIAM
6"
FS(Hz)
37
VAS(l)
18
QTS
0.33
PWR(W)
80
SPL(dB)
85.1
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37
Vas(l)
18
Qts
0.33
Qms
2.31
Qes
0.38
Bl(Tm)
5.4
Mms(gr)
15
Cms(mm/N)
1.3
Rms(kg/s)
1.49
Le(mH)
0.32
Re(Ohm)
3.2
Sd(sq.mm)
10400
Vd(l)
0.062
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
89.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
146
Cutout Diameter (mm)
126
Mounting Depth (mm)
71
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6P
