Model

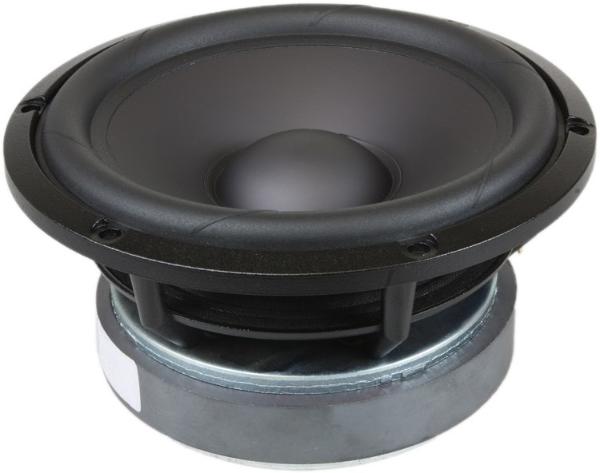

Seas L16RNX3
Rating
DIAM
6"
FS(Hz)
32
VAS(l)
18
QTS
0.33
PWR(W)
300
SPL(dB)
84.1
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
18
Qts
0.33
Qms
5.5
Qes
0.35
Bl(Tm)
8.7
Mms(gr)
21
Cms(mm/N)
1.2
Rms(kg/s)
0.76
Le(mH)
0.6
Re(Ohm)
6.4
Sd(sq.mm)
10400
Vd(l)
0.073
X-max(mm)
7
X-mech(mm)
11
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
85.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
146
Cutout Diameter (mm)
126
Mounting Depth (mm)
71
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6P
