Model

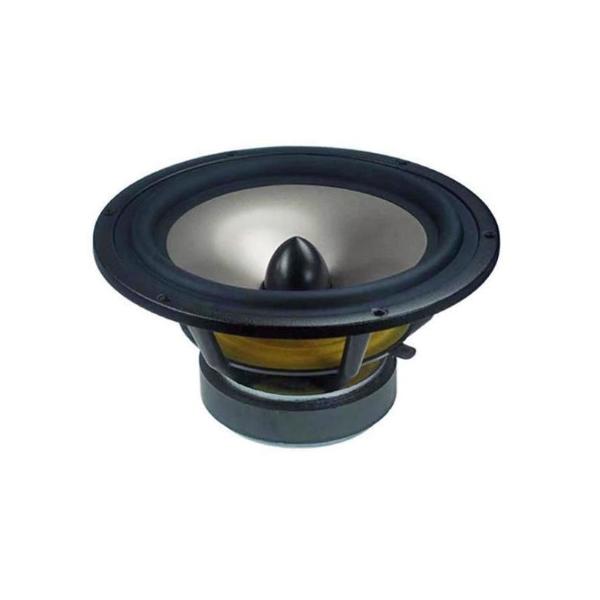

Seas L22RNX/P
Rating
DIAM
8"
FS(Hz)
23
VAS(l)
112
QTS
0.32
PWR(W)
300
SPL(dB)
87.4
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
112
Qts
0.32
Qms
2.07
Qes
0.38
Bl(Tm)
7.8
Mms(gr)
27
Cms(mm/N)
1.773
Rms(kg/s)
1.88
Le(mH)
1.43
Re(Ohm)
6
Sd(sq.mm)
21102
Vd(l)
0.127
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
300
RMS Power(W.)
110
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.4
Sensitivity(dB) 2.8-V
88.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
220
Cutout Diameter (mm)
186
Mounting Depth (mm)
90
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
