Model

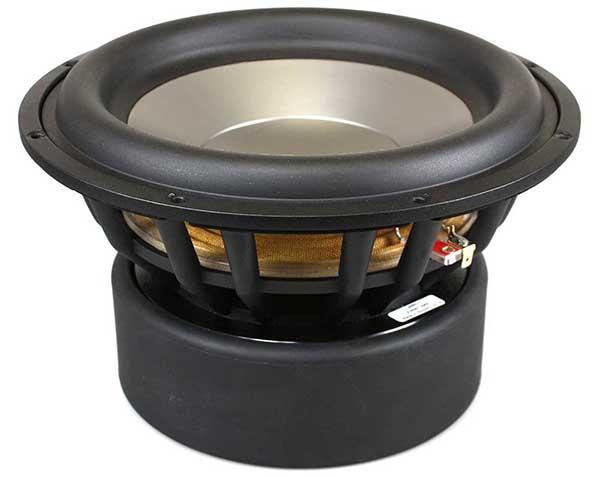

Seas L26ROY (XM001-04)
Rating
DIAM
10"
FS(Hz)
25
VAS(l)
56
QTS
0.42
PWR(W)
500
SPL(dB)
84.7
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
56
Qts
0.42
Qms
5.6
Qes
0.45
Bl(Tm)
12
Mms(gr)
118
Cms(mm/N)
0.34
Rms(kg/s)
3.31
Le(mH)
0.73
Re(Ohm)
3.3
Sd(sq.mm)
34200
Vd(l)
0.479
X-max(mm)
14
X-mech(mm)
28
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
88.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
269
Cutout Diameter (mm)
236
Mounting Depth (mm)
142
Magnet Diameter (mm)
190
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
