Model

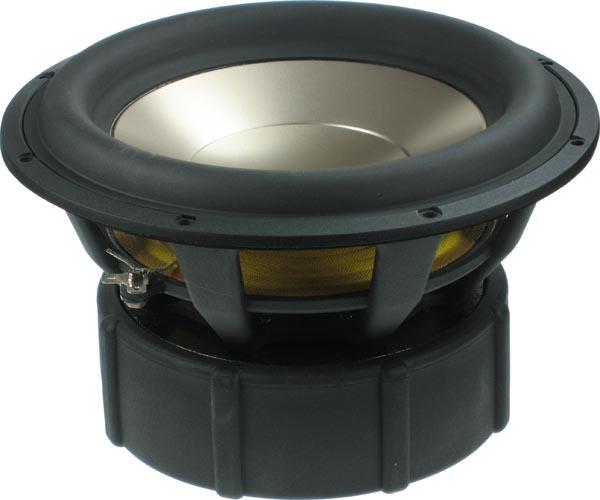

Seas L26ROY
Rating
DIAM
10"
FS(Hz)
22
VAS(l)
87
QTS
0.31
PWR(W)
500
SPL(dB)
86.3
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
22
Vas(l)
87
Qts
0.31
Qms
4.1
Qes
0.33
Bl(Tm)
12
Mms(gr)
107
Cms(mm/N)
0.5
Rms(kg/s)
3.7
Le(mH)
0.53
Re(Ohm)
3.1
Sd(sq.mm)
36300
Vd(l)
0.508
X-max(mm)
14
X-mech(mm)
28
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
90.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
269
Cutout Diameter (mm)
236
Mounting Depth (mm)
141
Magnet Diameter (mm)
197
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
