Model

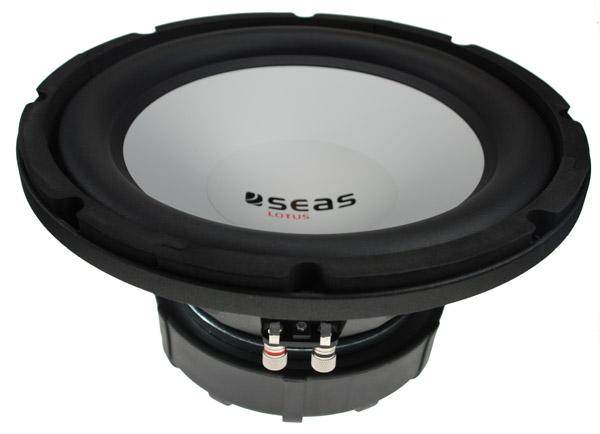

Seas SW300/1
Rating
DIAM
12"
FS(Hz)
23
VAS(l)
94
QTS
0.51
PWR(W)
500
SPL(dB)
84.9
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
94
Qts
0.51
Qms
5.92
Qes
0.56
Bl(Tm)
12.1
Mms(gr)
158
Cms(mm/N)
0.3
Rms(kg/s)
3.86
Le(mH)
5.82
Re(Ohm)
3.4
Sd(sq.mm)
48000
Vd(l)
0.648
X-max(mm)
14
X-mech(mm)
22
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
88.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
279
Mounting Depth (mm)
146
Magnet Diameter (mm)
189
Optimum Enclosures
Enclosures
Closed, BP4
