Model

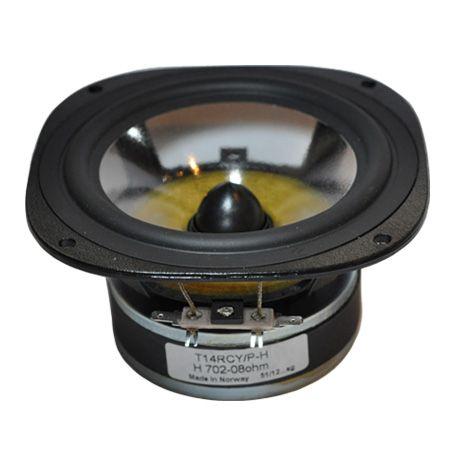

Seas T14RCY/P-H
Rating
DIAM
5"
FS(Hz)
40
VAS(l)
17.6
QTS
0.2
PWR(W)
250
SPL(dB)
89
IMP(Ohm)
8x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
17.6
Qts
0.2
Qms
1.27
Qes
0.23
Bl(Tm)
6.7
Mms(gr)
7
Cms(mm/N)
2.23
Rms(kg/s)
1.41
Le(mH)
0
Re(Ohm)
5.7
Sd(sq.mm)
7510
Vd(l)
0.023
X-max(mm)
3
X-mech(mm)
7
General Parameters
Diameter (inch)
5
Max Power(W.)
250
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
90.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
133
Cutout Diameter (mm)
113
Mounting Depth (mm)
69
Magnet Diameter (mm)
93
Optimum Enclosures
Enclosures
BP6P, Vented
