Model

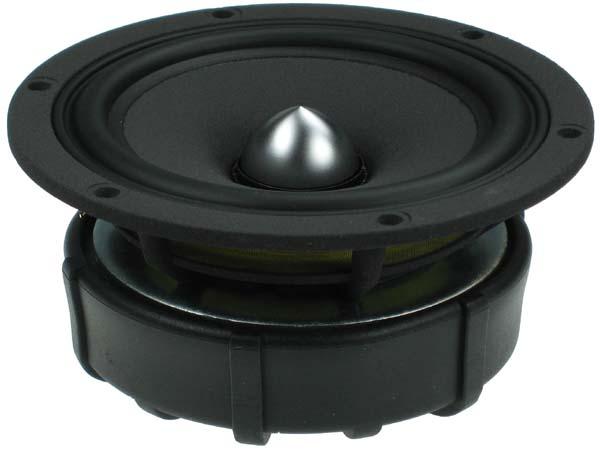

Seas W12CY003
Rating
DIAM
5"
FS(Hz)
60
VAS(l)
4
QTS
0.36
PWR(W)
200
SPL(dB)
84.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60
Vas(l)
4
Qts
0.36
Qms
2.3
Qes
0.44
Bl(Tm)
5.5
Mms(gr)
6
Cms(mm/N)
1.2
Rms(kg/s)
1
Le(mH)
0.41
Re(Ohm)
5.5
Sd(sq.mm)
5000
Vd(l)
0.015
X-max(mm)
3
X-mech(mm)
5
General Parameters
Diameter (inch)
5
Max Power(W.)
200
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
86.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
120
Cutout Diameter (mm)
100
Mounting Depth (mm)
67
Magnet Diameter (mm)
99
Optimum Enclosures
Enclosures
Vented, BP6P
