Model

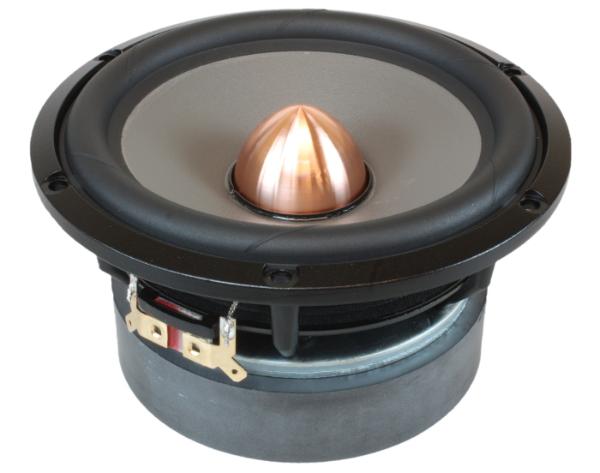

Seas W16NX003(E0073-08)
Rating
DIAM
5"
FS(Hz)
36
VAS(l)
17
QTS
0.34
PWR(W)
300
SPL(dB)
85.3
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
17
Qts
0.34
Qms
4.7
Qes
0.36
Bl(Tm)
7.6
Mms(gr)
14
Cms(mm/N)
1.35
Rms(kg/s)
0.68
Le(mH)
0.12
Re(Ohm)
6.4
Sd(sq.mm)
9400
Vd(l)
0.066
X-max(mm)
7
X-mech(mm)
11
General Parameters
Diameter (inch)
5
Max Power(W.)
300
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.3
Sensitivity(dB) 2.8-V
86.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
146
Cutout Diameter (mm)
126
Mounting Depth (mm)
74
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Vented, BP6P
