Model

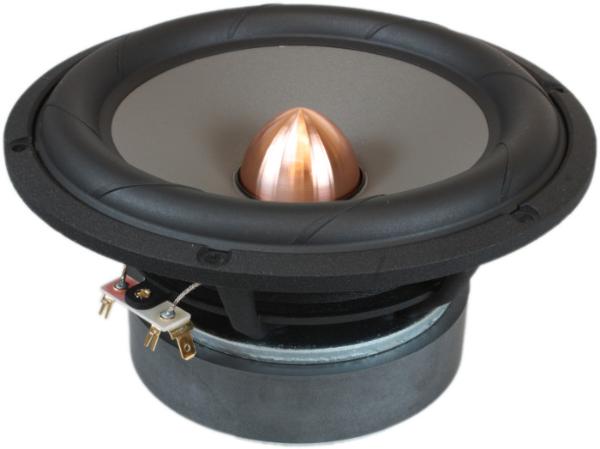

Seas W19NX001
Rating
DIAM
6"
FS(Hz)
34
VAS(l)
24
QTS
0.41
PWR(W)
360
SPL(dB)
85.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
24
Qts
0.41
Qms
5.3
Qes
0.45
Bl(Tm)
8.3
Mms(gr)
23
Cms(mm/N)
0.95
Rms(kg/s)
0.93
Le(mH)
0.23
Re(Ohm)
6.2
Sd(sq.mm)
13600
Vd(l)
0.095
X-max(mm)
7
X-mech(mm)
11
General Parameters
Diameter (inch)
6
Max Power(W.)
360
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
86.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
176
Cutout Diameter (mm)
153
Mounting Depth (mm)
81
Magnet Diameter (mm)
110
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
